20x20x12 mm
MXO37H/R
|
MXO37H/R
Hermetically sealed high frequency series
The MXO37H/R series - hermetically sealed OCXOs based on the IHR technology and intended for usage in harsh environmental conditions. The OCXOs operate in 30 - 300 MHz range with multiplication of frequency by factors 3 or 5 providing at high operational frequencies highest temperature, long-term and short-term stability.
|
Basic electrical parameters
Operational frequency range: 30 - 300 MHz
Temperature stability at 100 MHz in (-40 +80)⁰C: to 2 ppb Aging at 100 MHz: to 0.5 ppb/day and 50 ppb/year Allan variance at 100 MHz, 1 s: to 2E-11 Power consumption: < 180 mW Warm-up time: < 45 s – typical, 15 s special option Sub-harmonics level: < - 40 dB Input voltage: 3,3 V or 5V Output waveform: CMOS, sine wave |

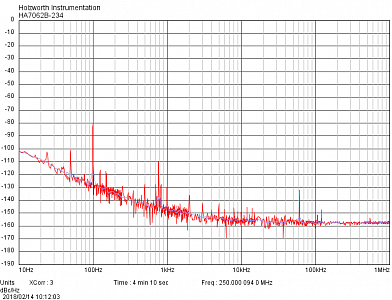

Best achievable phase noise
|
