20x20x12 mm

MXO37H/R
MXO37H/R
Hermetically sealed high frequency series
The MXO37H/R series - hermetically sealed OCXOs based on the IHR technology and intended for usage in harsh environmental conditions. The OCXOs operate in 30 - 300 MHz range with multiplication of frequency by factors 3 or 5 providing at high operational frequencies highest temperature, long-term and short-term stability.
MXO37/8D MXO37/14D MXO37/8L MXO37/14L MXO37/8P MXO37/14P MXO37/8U MXO37/14U MXO37/8UP MXO37/14UP MXO37H/14D MXO37H/14P MXO37/R MXO37/RU MXO37H/R
Basic electrical parameters
Operational frequency range: 30 - 300 MHz
Temperature stability at 100 MHz in (-40 +80)⁰C: to 2 ppb
Aging at 100 MHz: to 0.5 ppb/day and 50 ppb/year
Allan variance at 100 MHz, 1 s: to 2E-11
Power consumption: < 180 mW
Warm-up time: < 45 s – typical, 15 s special option
Sub-harmonics level: < - 40 dB
Input voltage: 3,3 V or 5V
Output waveform: CMOS, sine wave
Download full spec and ordering information

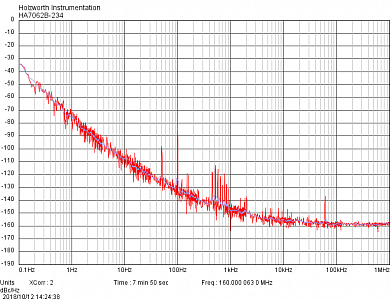

Best achievable phase noise

100 MHz x 5160 MHz x 5200 MHz x 5250 MHz x 5
