16x15x8 mm
MXO37/8L
|
MXO37/8L
Ultra Low Power Miniature Low Profile OCXO
The MX037 series utilizes the internal heating resonator (IHR) technology incorporating the
whole oven system together with the crystal plate inside the TO-8 vacuum holder. Such
OCXO concept results in radical reduction of its volume, power consumption and warm-up
time. In spite of the miniature sizes and extremely low power consumption such oscillators
exhibit excellent temperature stability, low phase-noise and aging rate being at the level of
high-end OCXOs using conventional oven designs.
|
Basic electrical parameters
8 mm height
Very low power consumption ( 180mW at +25°C ) High frequency stability (to ± 10 ppb over -40°C to 85°C) Very fast warming-up (to 30 s) Very low phase-noise level (-163 dBc/Hz, floor) Low aging (to 0.1ppb/day, 0.015ppm/year) Fundamental operation at up to 100 MHz |

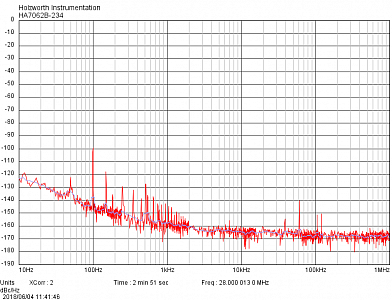

Best achievable phase noise
|
