16x15x8 mm

MXO37/8L
MXO37/8L
Ultra Low Power Miniature Low Profile OCXO
The MX037 series utilizes the internal heating resonator (IHR) technology incorporating the whole oven system together with the crystal plate inside the TO-8 vacuum holder. Such OCXO concept results in radical reduction of its volume, power consumption and warm-up time. In spite of the miniature sizes and extremely low power consumption such oscillators exhibit excellent temperature stability, low phase-noise and aging rate being at the level of high-end OCXOs using conventional oven designs.
Basic electrical parameters
8 mm height
Very low power consumption ( 180mW at +25°C )
High frequency stability (to ± 10 ppb over -40°C to 85°C)
Very fast warming-up (to 30 s)
Very low phase-noise level (-163 dBc/Hz, floor)
Low aging (to 0.1ppb/day, 0.015ppm/year)
Fundamental operation at up to 100 MHz
Download full spec and ordering information

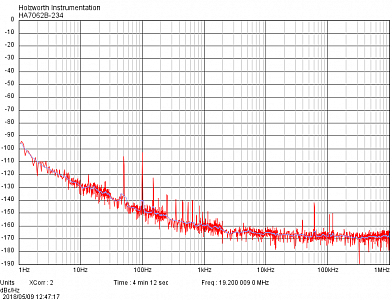

Best achievable phase noise

10 MHz16.384 MHz19.2 MHz28 MHz32 MHz 40 MHz
