16x15x12 mm
MXO37/8UP
|
MXO37/8UP
Ultra Low Power High Stability Miniature OCXO
The crystal plate inside the TO-8 vacuum holder. Such approach results in radical reduction of
the OCXO sizes, power consumption and warm-up time. In spite of very small sizes and
extremely low power consumption these oscillators exhibit excellent frequency stability and
low phase-noise level comparable with that of the high-end conventional OCXO designs. The
MXO37/8UP and MXO37_8UPS (SMD) models have DIP8 compatible sizes and pins-out and
are the world smallest high stability OCXOs.
|
Basic electrical parameters
Miniature DIP8 sizes
Very low power consumption (to 90mW at +25°C) High frequency stability (to ± 5 ppb over -40°C to 85°C) Very fast warming-up to 30 s. Very low phase-noise level (-172 dBc/Hz, floor) Low aging (to 0.1ppb/day, 0.015ppm/year) Fundamental operation at up to 150 MHz |

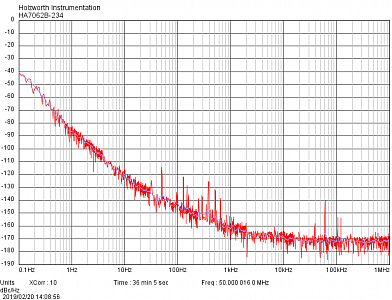

Best achievable phase noise
|
