16x15x11 mm

MXO37/8(S)
MXO37/8(S)
Obsolete. Alternative parts MXO37/8(S)
The MXO37/8 series – DIP8 compatible OCXOs based on the IHR technology. The OCXOs operate in 8 - 100 MHz range (fundamental) providing unique combination of the smallest sizes, ultra-low power consumption and short warm-up time with high temperature stability and low phase-noise level. The surface mount version is available (MXO37/8S).
MXO37/8(S) MXO37/14(S) MXO37H/14(S)
Basic electrical parameters
Operational frequency range: 8 - 100 MHz (fundamental)
Temperature stability at 10 MHz in (-40 +85)⁰C: to 10 ppb
Aging at 10 MHz: to 0.2 ppb/day and 20 ppb/year
Allan variance at 10 MHz, 1 s: to 5E-12
G-sensitivity (worst direction): to 0.5 ppb/g
Power consumption: < 150 mW
Warm-up time at 25⁰C: 45 s, 15 s –special option
Input voltage: 3.3 V or 5V
Output waveform: CMOS
Download full spec and ordering information

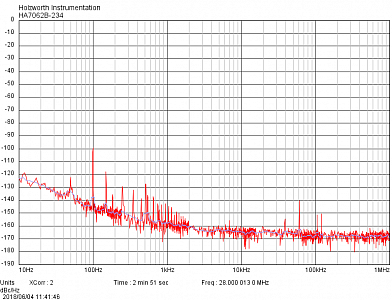

Best achievable phase noise

10 MHz16.384 MHz19.2 MHz28 MHz32 MHz40 MHz
