20x20x10 мм

MXOCR

Low phase-noise series

The MXOC series comprises high stability OCXO designs packaged in a variety of standard small cases. The oscillators operate in 5 - 150 MHz frequency range (on the fundamental mode) providing high frequency stability at very low phase-noise level and phase jitter.

MXOCE MXOCI MXOCR MXOCS

Basic electrical parameters

Operational frequency range: 5 - 150 MHz (fundamental)
Temperature stability at 10 MHz in (-40 +85)⁰C: to 1 ppb
Aging at 10 MHz: to 0.15 ppb/day and 20 ppb/year
Allan variance at 1 s: to 5E-12
G-sensitivity (worst direction): to 0.5 ppb/g
Power consumption: < 1.2W
Input voltage: 3.3V, 5V or 12 V
Output waveform: CMOS, sine wave

Download full spec and ordering information

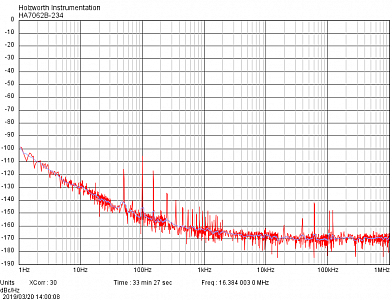

Best achievable phase noise

10 MHz 16.384 MHz 20 MHz 25 MHz 32.768 MHz 40 MHz 62 MHz 100 MHz 125 MHz 131.6 MHz 141.42 MHz 150 MHz
