35x27x16 mm

MXODE
MXODE
Ultra high stability double-oven series
The MXODE series utilizes double oven control of the precise quartz resonator and of the oscillator circuitry. The OCXOs operate in 8 - 100 MHz range (above 24 MHz multiplication of frequency is normally used) providing utmost temperature, long-term and short-term frequency stability.
MXODE MXODR
Basic electrical parameters
Operational frequency range: 8 - 100 MHz
Temperature stability at 10 MHz in (-40 +85)⁰C: to 0.1 ppb
Aging at 10 MHz: to 0.1 ppb/day, 15 ppb/year
Allan variance at 1 s: to 7e-13
Power consumption: < 1.5W
Input voltage: 3.3 V, 5V or 12V
Output waveform: CMOS, sine wave
Download full spec and ordering information

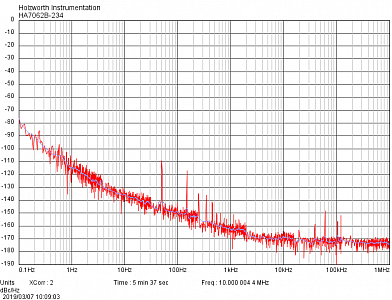

Best achievable phase noise

10 MHz
