20x20x12 mm

MXO37/R

Ultra-high stability low power consumption series

MXO37/R Ultra high stability low power hermetically sealed OCXOs based on advanced IHR technology provide extremely high frequency stability and low phase-noise level at very low power comsumption, small sizes and fast warming-up. The OCXOs operate at 8-100 MHz fundamental frequencies and can been applied for harsh environmental conditions with severe mechanical factors and 100% humidity.

MXO37/8D MXO37/14D MXO37/8L MXO37/14L MXO37/8P MXO37/14P MXO37/8U MXO37/14U MXO37/8UP MXO37/14UP MXO37H/14D MXO37H/14P MXO37/R MXO37/RU MXO37H/R

Basic electrical parameters

Operational frequency range: 8 - 150 MHz (fundamental)
Temperature stability at 10 MHz in (-40 +85)⁰C: to 0.5 ppb
Aging at 10 MHz: to 0.2 ppb/day and 20 ppb/year
Allan variance at 1 s: to 3E-12
G-sensitivity (worst direction): to 0.3 ppb/g
Power consumption: < 180 mW
Warm-up time at 25⁰C: 90 s
Input voltage: 3.3 V or 5V
Output waveform: HCMOS, sine wave

Download full spec and ordering information

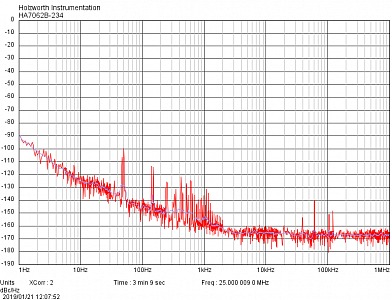

Best achievable phase noise

10 MHz 16.384 MHz 20 MHz 25 MHz 40 MHz 50 MHz 62 MHz 100 MHz 131.6 MHz 141.42 MHz
