20x20x14 mm

MXO37/RU

Miniature Ultra High Stability Ultra Low power OCXO

The МХО37/R model is built on advanced internally heated resonator (IHR) technology providing combination of very low power consumption and small sizes with outstanding frequency stability in wide temperature range that is unachievable with usage of conventional OCXO designs. The unique parameters of the oscillators make it very prospective for application in various high-end portable (especially battery supplied) equipment demanding superb frequency stability at minimal power consumption and smallest sizes.

MXO37/8D MXO37/14D MXO37/8L MXO37/14L MXO37/8P MXO37/14P MXO37/8U MXO37/14U MXO37/8UP MXO37/14UP MXO37H/14D MXO37H/14P MXO37/R MXO37/RU MXO37H/R

Basic electrical parameters

Miniature 5 ccm packaging
Power consumption: <90 mW
High stability - to ± 5x10^-10 over -40 to+85°C
Low aging rate - to ± 1x10^-10/day, 1.5x10^-8/year
Low Allan variance value – up to 3x10^-12/1s
Frequency range: 5 to 150 MHz

Download full spec and ordering information

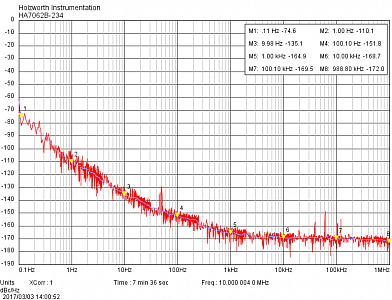

Best achievable phase noise

10 MHz 16.384 MHz 20 MHz 25 MHz 40 MHz 50 MHz 62 MHz 100 MHz 131.6 MHz 141.42 MHz
