22x15x11 mm
MXO37H/14D
|
MXO37H/14D
Low power high durable miniature OCXO
The МХО37 series uses the internal heating resonator (IHR) technology with arrangement of the whole oven system together with the crystal plate inside the TO-8 vacuum holder. Such approach results in radical reduction of the OCXO sizes, power consumption and its warm-up time providing at that excellent temperature stability, low phase-noise and aging. The MXO37/8D model utilizes essentially strengthened mechanical construction of the IHR enabling extraordinary mechanical durability.
|
Basic electrical parameters
Power consumption: <230 mW
DIP8 or DIP14 compatible sizes and pins-out High mechanical shock durability: to 500 g 1 ms shock High durability to vibration: 30 g, 0-2500 Hz Temperature stability: to 10 ppb in (-40 +85)⁰C Aging: 0.5 ppb/day, 50 ppb/year Phase-noise: -95 dBc/Hz@1Hz, -165 dBc/Hz floor Operational frequency range: 8-100 MHz (fundamental mode) |

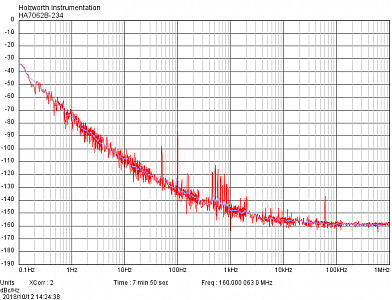

Best achievable phase noise
|
