22x15x11 mm

MXO37H/14(S)
MXO37H/14(S)
Obsolete. Alternative parts MXO37H/14P(S)
The MXO37H/14 series – DIP14 compatible OCXOs based on the IHR technology. The OCXOs operate in 30 - 300 MHz range with multiplication by factors 3 or 5 providing at very low power consumption high temperature stability and low aging. The surface mount version is available (MXO37H/14S).
MXO37/8(S) MXO37/14(S) MXO37H/14(S)
Basic electrical parameters
Operational frequency range: 30 - 300 MHz
Temperature stability at 100 MHz in (-40 +85)⁰C: to 10 ppb
Aging at 100 MHz: to 0.5 ppb/day and 50 ppb/year
Allan variance at 100 MHz, 1 s: to 1E-11
Power consumption: < 150 mW
Warm-up time: < 45 s – typical, 15 s – special option
Sub-harmonics level: < - 40 dB
Input voltage: 3,3 V or 5V
Output waveform: CMOS, sine wave
Download full spec and ordering information

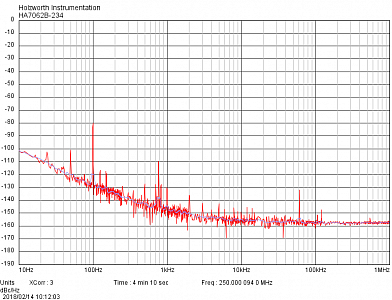

Best achievable phase noise

100 MHz x 5160 MHz x 5200 MHz x 5250 MHz x 5
