22x15x10 mm

MXO37/14P
MXO37/14P
High stability low power miniature OCXOs
The МХО37 series utilizes the internal heating resonator (IHR) technology incorporating the whole oven system together with the crystal plate inside the TO-8 vacuum holder. Such OCXO concept results in radical reduction of its volume, power consumption and warm-up time. The novel MXO37/14P version differs from the basic MXO37/14 model by improved oscillator circuitry providing essentially better temperature stability at the same miniature sizes, extremely low power consumption and low phase-noise level.
Basic electrical parameters
Miniature DIP8 and DIP14 compatible sizes
Frequency stability in (-40 +85)°C 2 ppb (at 10 MHz)
Aging (at 10 MHz):0.2 ppb/day, 20 ppb/year
Allan variance: to 3x10-12/1s
Phase-noise level: -173 dBc/Hz, floor
Low G-sensitivity: to 0.3 ppb/g
Low power consumption: < 180 mW
Short warm-up time: less than 60 s
Fundamental operation at up to 150 MHz
Download full spec and ordering information

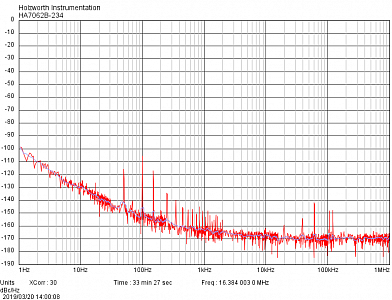

Best achievable phase noise

10 MHz16.384 MHz20 MHz25 MHz40 MHz50 MHz62 MHz100 MHz131.6 MHz141.42 MHz
