22x15x10 mm
MXO37/14P
|
MXO37/14P
High stability low power miniature OCXOs
The МХО37 series utilizes the internal heating resonator (IHR) technology incorporating the whole oven system together with the crystal plate inside the TO-8 vacuum holder. Such OCXO concept results in radical reduction of its volume, power consumption and warm-up time.
The novel MXO37/14P version differs from the basic MXO37/14 model by improved
oscillator circuitry providing essentially better temperature stability at the same miniature
sizes, extremely low power consumption and low phase-noise level.
|
Basic electrical parameters
Miniature DIP8 and DIP14 compatible sizes
Frequency stability in (-40 +85)°C 2 ppb (at 10 MHz) Aging (at 10 MHz):0.2 ppb/day, 20 ppb/year Allan variance: to 3x10-12/1s Phase-noise level: -173 dBc/Hz, floor Low G-sensitivity: to 0.3 ppb/g Low power consumption: < 180 mW Short warm-up time: less than 60 s Fundamental operation at up to 150 MHz |

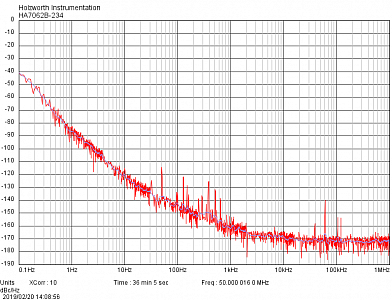

Best achievable phase noise
|
