16x15x10 mm
MXO37/8P
|
MXO37/8P
High stability low power miniature OCXOs
The МХО37 series utilizes the internal heating resonator (IHR) technology incorporating the
whole oven system together with the crystal plate inside the TO-8 vacuum holder. Such
OCXO concept results in radical reduction of its volume, power consumption and warm-up
time.
The novel MXO37/8P version differs from the basic MXO37/8 model by improved
oscillator circuitry providing essentially better temperature stability at the same miniature
sizes, extremely low power consumption and low phase-noise level.
|
Basic electrical parameters
Miniature DIP8 sizes
Very low power consumption (to 130mW at +25°C) High frequency stability (to ± 5 ppb over -40°C to 85°C) Very fast warming-up (to 30 s) Very low phase-noise level (-172 dBc/Hz, floor) Low aging (to 0.1ppb/day, 0.15ppm/year) Fundamental operation at up to 150 MHz |

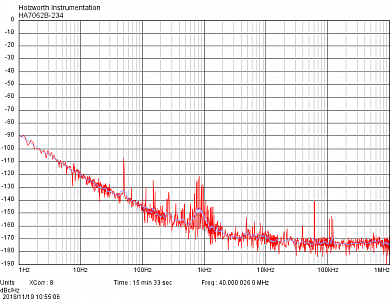

Best achievable phase noise
|
