16x15x10 mm

MXO37/8P
MXO37/8P
High stability low power miniature OCXOs
The МХО37 series utilizes the internal heating resonator (IHR) technology incorporating the whole oven system together with the crystal plate inside the TO-8 vacuum holder. Such OCXO concept results in radical reduction of its volume, power consumption and warm-up time. The novel MXO37/8P version differs from the basic MXO37/8 model by improved oscillator circuitry providing essentially better temperature stability at the same miniature sizes, extremely low power consumption and low phase-noise level.
Basic electrical parameters
Miniature DIP8 sizes
Very low power consumption (to 130mW at +25°C)
High frequency stability (to ± 5 ppb over -40°C to 85°C)
Very fast warming-up (to 30 s)
Very low phase-noise level (-172 dBc/Hz, floor)
Low aging (to 0.1ppb/day, 0.15ppm/year)
Fundamental operation at up to 150 MHz
Download full spec and ordering information

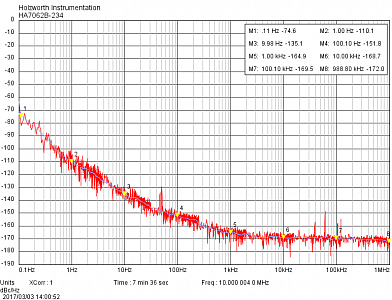

Best achievable phase noise

10 MHz16.384 MHz20 MHz25 MHz40 MHz50 MHz62 MHz100 MHz131.6 MHz141.42 MHz
